Brand Name : SED Pharma
Model Number : SED-20KJQS-L
Certification : CE
Place of Origin : China
MOQ : 1 Set
Price : Negotiable
Payment Terms : T/T,L/C, MoneyGram,Cash
Supply Ability : 30 Sets per month
Delivery Time : 50-60 Days after receiving the deposit
Packaging Details : Wooden Case
Name : Full Automatic Aluminum Cap Washing Machine Rubber Stopper Washing Machine
Application : Pharmaceutical Aluminum cap
Capacity : Capacity of 200000 pcs/batch for Φ19*8 Aluminum cap
Main process : Feeding, coarse washing, rinsing, flushing, fine washing, sampling, drying, pressure normalization, cooling and discharging
Cycle time per batch : About 5h
Feeding mode : Manual feeding
Dimension : 3700X2450X2500mm
key word : Aluminum Rubber Stopper Washing Machine
Product Parameters of Stopper Washing Machine
Name |
Design parameters and requirements |
Remarks | |
Basic technical parameters | |||
Model specification & quantity | SED-20KJQS-L | ||
Application |
Pharmaceutical Aluminum cap |
||
Capacity |
Capacity of 200000 pcs/batch for Φ19*8 Aluminum cap |
Adjust according to the customer's actual aluminum cover |
|
Main process |
Feeding, coarse washing, rinsing, flushing, fine washing, sampling, drying, pressure normalization, cooling and discharging |
||
Cycle time per batch |
About 5h |
||
Feeding mode |
Manual feeding |
||
Washing mode |
air impact device + central strong spray, can sample in line |
||
Drying mode |
Electric heating drying |
||
Cooling mode |
Vacuum +fresh air design cooling |
||
Discharging mode |
Elephant nose structure automatic discharge |
||
Design temperature |
133℃ | ||
Design pressure |
Tank -0.1mpa |
||
Dimension (mm) |
3700X2450X2500 |
It is based on the material object |
|
Net weight (kg) |
5000 kg |
![]() |

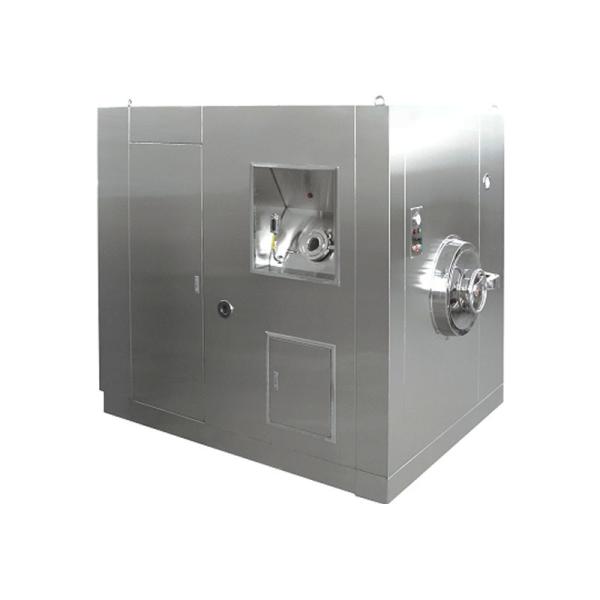

Full Automatic Aluminum Cap Washing Machine Rubber Stopper Washing Machine Images |
