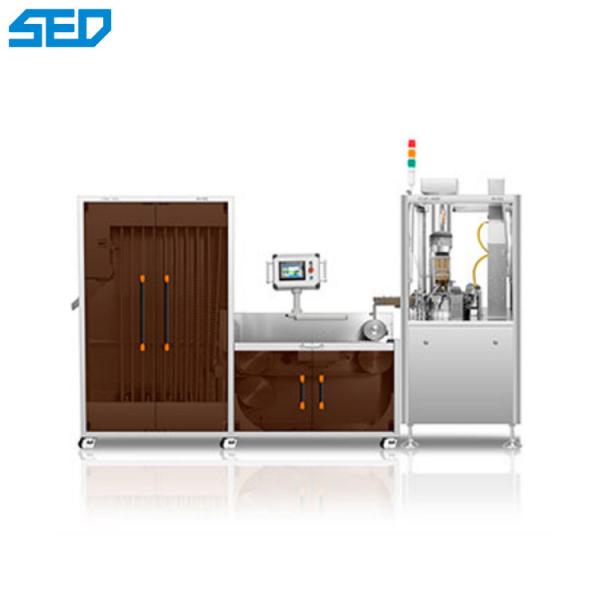

450 Capsule Per Min Liquid Capsule Filling Machine
Products Description of Capsule Filling Machine
High-precision indexing box, stable operation, accurate positioning.
Improved totally enclosed frame rotary turret prevents contamination, easy to clean.
Single motion design of upper and lower segments with imported double lip seal rings for better sealing performance.
Simultaneous detection of capsule body and cap for deficiency.
Applicable for oil based solution and suspension.
Detailed Parameters of Capsule Filling Machine
| Equipment Model | SED-300YJ-I | SED-450YJ-I | SED-600YJ-I |
| Machine weight | 850kg |
| Overall dimension | 1090×870×2100 mm |
| Motor power | 3.1kw + 2.2kw (dust collector) |
| Power supply | 3 phase, AC 380V, 50Hz |
| Max. Output | 18,000 cap/h | 27,000 cap/h | 36,000 cap/h |
| Segment hole | 4 hole | 6 hole | 8 hole |
| Capsule size | 00#～2# |
| Capsule using rate | ≥ 99.5% |
| Noise index | ≤ 75dBA |
| Dosage difference | ≤ ±3% (test with peanut oil 400mg filling) |
| Vacuum degree | -0.02～-0.06MPa |
| Working temperature | 21℃ ± 3℃ |
| Working relative humidity | 40～55% |
| Product form | Oil based liquid, solution, and suspension |
| Control system | Stepless frequency conversion control, PLC control with touch-screen |
| Material | Spare part contact with medicine adopt superior S.S 304 & GMP compliable material |
| Criterion | Comply to GMP completely |
Feature of Capsule filling machine
1. Hard Gelatin automatic capsule filling machine has been improved the inner design turret, and imports beeling bearing for each machine from japan directly, so that it can be sure a longer usage life and precision of the machine.
2. The working station cam runs under the good lubricating condition, and maintains the inner lunbrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
3. The automatic capsule filling machine adopts enlarged cam, tianhong has becoje the one who matched the cam of RU140 to RU 125, while it enhanced the stability of the machines and extends the life of the machine to a great extent.
4. The automatic capsule filling machine is controlled by the computer, has as stepless timing with the frequency conversion the numeral showing makes an easy operation and clear appearance.
5. The multi-bore dosing bring a precision dosage; the good capsule applicability makes a high capsules qualified rate more than 99%. It can be filled with the Chinese traditional medicine and the western medicine.
6. Add the extra function of capsule control switch. Control the capsule outside of the machine, it is more safely and quickly.
7. Add the click-moving control system, make and easier operation and clearness.
Application of Capsule filling machine
It can be filled in hard capsules (solution, suspension, microemulsion). As a convenient way of drug delivery and filling concept in the new century, this machine is the latest filling equipment for the development of high-end products in medicine, health care and other industries.
