Product introduction of Freeze Dry Machine

● This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials.

When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.

● It is also suitable for the production of liquid food. It can be used for freeze-drying of dairy products and fruit and vegetable products.

Main Parameter of Freeze Dry Machine

Main Features of Freeze Dry Machine

● The shelves are made with unique patented technology, high pressure resistance, high flatness, and good temperature uniformity.

● The cooling speed can be controlled throught The freeze-drying curve optimization control technology in the pre-frozen phase, and at the same time, the sample heating speed and the current vacuum value also can be controlled in the sublimation and analytical drying stages.

● The patented gas diversion design and control technology ,strong ice collecting capacity and high drying efficiency.

● The unique dual-channel sealing technology of the mobile + fixed dual-channel door seals sterilizes the stationary silicone rubber while steam sterilizing.

● Vacuum adjustment during drying operation to avoid foaming and blowing of special materials and improve drying efficiency.

● Industrial-grade embedded touch screen + dedicated SH-HPSC-IV modular controller, stable and reliable system, high control accuracy.

● The professionally designed LYO-CONTROL control system can save multiple sets of process . At the same time, the process can be adjusted in real time during the drying process to improve the process optimization rate.

● Flexible manual + automatic control mode, the manual for groping process, and the automatic for batch production.

● The powerful LYO-MEGA host computer control system can record and save the operating data, curves and alarm records for ten years to improve the traceability of products; at the same time, it is convenient for observation, operation and fault diagnosis.

● User grades and passwords can be set, and operations can be decentralized to meet GMP-related requirements.

● The non-stardarded can be customized as requested.

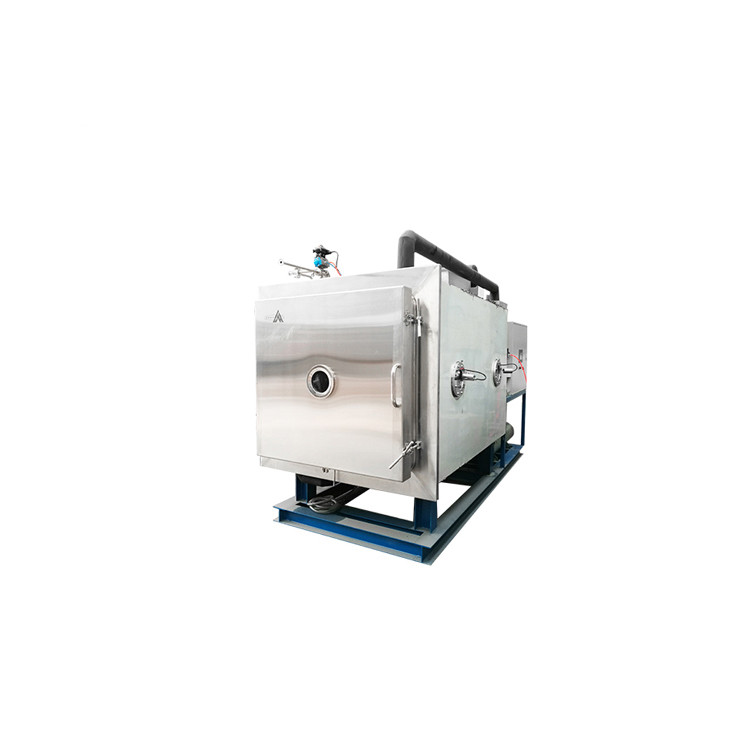

Product Show of Freeze Dry Machine

Steps for usage of Freeze Dry Machine

1. Put the stainless steel bottomless tray on the storage cart and push it to the front of the freeze-drying compartment of the freeze-drying machine;

2. Open the freeze-drying compartment door, put the tray into the partition smoothly, slowly pull out the tray, and insert the sample probe into the sample respectively;

3. After the sample is placed, check whether the freeze-drying compartment door is closed and whether there is a gap on the side;

4. Check whether the cold trap door is closed and whether the water inside the cold trap has been wiped clean. If there is water, it should be drained and wiped clean. So as not to affect the life of the vacuum pump;

5. After checking and confirming that there is no problem, click the program freeze-drying button on the main page to enter the freeze-drying curve setting page;

6. After the freeze-drying curve is set, press the manual button on the left side of the freeze-drying program to press the freeze-drying machine, the freeze-drying machine will enter the automatic operation mode, and enter the sublimation drying stage after the pre-freezing stage. After the sublimation drying stage, it will transfer to the analytical drying stage.

Application of Freeze Dry Machine

freeze drying equipment

freeze dryer lyophilizer
