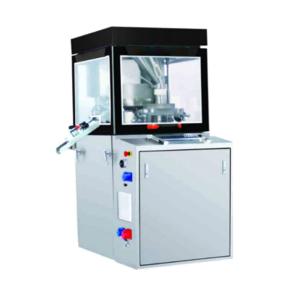

High Quality High Speed Tablet Press Machine

Name: High Quality High Speed Tablet Press Machine
Brand: SED Pharma
Price: 1 USD

Brand Name : SED Pharma

Model Number : SED-370-26GY-P

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T,L/C, MoneyGram,Cash

Supply Ability : 30 Sets per month

Delivery Time : 35 Days after receiving the deposit

Packaging Details : Wooden Case

Name : High Quality High Speed Tablet Press Machine

Model : SED-370-26GY-P

Dimension(mm) : 1080*1440*1950

Tooling Type : EU D

MaxOutput (pcs/h) : 171000

Rotary speed of the turret (rpm) : 11

material : stainless steel

key word : Tablet Press Machine

Contact Now

CNC Lozenge Single Punch Tablet Press Machine Experimental Type Long Life

Product description of Tablet Compression Machine

High quality is based on the advanced and reasonable design. The combinationof rich experience for tablet press manufacturing and modern technologygenerated the new design philosophy, the High SpeeoTablet Press realized standardization, modularity and serialization.

Product Parameters of Tablet Compression Machine

Numberof Stations	26	32
Tooling Type	EU D	EU B
MaxOutput (pcs/h)	171000	211000
Max.Tablet Diameter(mm)	25	16
MaxFilling Depth (mm)	20	16
MaxTablet Thickness(mm)	10	8
MaxMain Compression Force(kN)	100	80
MaxPre-compression Force(kN)	20	20
Rated Power(kW)	11
Dimension LxWxH(mm)	108014401950mm
Weight(kg)	1780

Features

1.Compliant with GMP and FDA requirements
2.Servo motor controls the weight and hardness of pills
3.Special oil and dust resistant design
4.The overall design adopts a tight seal and dust-proof feature
5.Hydraulic pressure support system
6.Easy to disassemble structure with good maintainability
7.The tablet press room has a 360 ° no dead angle structure, making it easy to observe and clean

Application of Tablet Compression Machine
